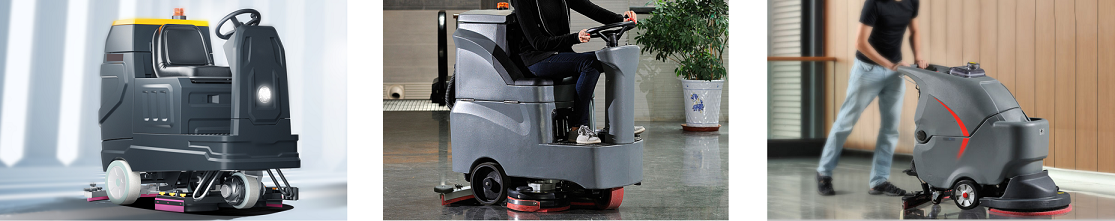

XD515 all-in-one motor controller is integrated floorcare motor control system for small-to-medium ride-on scrubber dryers.
Features
Full Featured
1. Programmable control up to 5 DC brushed motor.
2. It offers 12 input switch, 6 NPN output control, and throttle adapting.
3. CANbus communicate with IoT module for leasing and remote monitoring.
4. Build-in regenerate break to recycle energy and charge to battery when motor stop working.
5. Build-in soft-start, squeegee blade pressure adjustment, solution flow control, hours (Power on, Drive, Vaccum, Brush), fault indication.
Robust Safety and Reliability
1. Internal main relay provides secure power-off.
2. Advanced MOSFET power section for smooth and seamless control.
3. Electronics sealed and heat transfer design.
4. Faulty detection, prevent over-voltage, under-voltage, over-current, over-heat.
5. Reverse polarity protection on battery connections.
6. Independent security controller, short circuit protection, brake control interface with hardware watchdog.
Simple & Flexible
1. Support upgrade by USB flash, provide customizable software.
2. C Windows programming and powerful system diagnostic tools.
3. Supports CANbus and CANopen protocols.
Specification
Items | Specifications | ||||
P/N | DN28-XD515 | ||||
Voltage | 24/36 | ||||
Motor | Traction | Brush | Vaccum | Brush lift | Squeegee lift |
Brush lift motor | 150~180 | 100 | 50 | 20 | 20 |
Squeegee lift motor | 50~80 | 50 | 30 | 10 | 10 |
