D2P-C

							Nominal Voltage (VDC): 24  & Maximum Current (10S): 100Arms

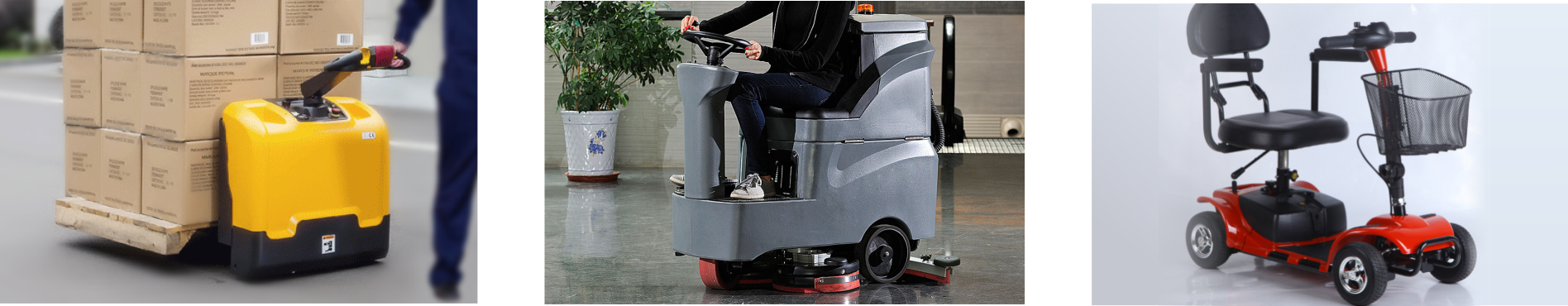

D2P-C is a DC brushed motor controller designed for controlling DC brushed motors in applications such as electric forklifts and cleaning vehicles. It has the capability to simultaneously control both the traction motor and the pump motor. The controller supports serial interface and parameterized programming, making it convenient for application and maintenance, and high-quality and reliable product to use.


FEATURES




Application



Functional integrity

1. 5 x Input Switch, 2 x NPN Output, Voltage Throttle.

2. Build-in regenerate break to recycle energy and charge to battery when motor stop working.

3. Advanced motor control algorithm provides smooth starting on a ramp.

4. Traction and pump intergrated controller with compated size, high performance value.


Robust Safety and Reliability

1. Advanced MOSFET power section for smooth andseamless control.

2.Electronics sealed and heat transfer design.

3.Faulty detection, prevent over-voltage, undervoltage, overcurrent, over-heat.


Simple & Flexible

1.Simple wiring, easy to install

2.On-premise or remote upgrade

3.PC Windows programming and powerful system diagnostic tools.


Specification



ItemsSpecifications
Product Number
D2P-C
10s output Current Rating (Arms)Traction:100A ; Pump:45A
2Min output Current Rating (Arms)Traction:55A ; Pump:20A
60Min output Current Rating (Arms)Traction:35A
ApplicationBrushed DC Motor
CommunicationSerial
Voltage24VDC
Operating Temperature-30°C ~ +55°C

Note: 60 Min RMS Current Rating is measured under proper heat-sink assistance.
